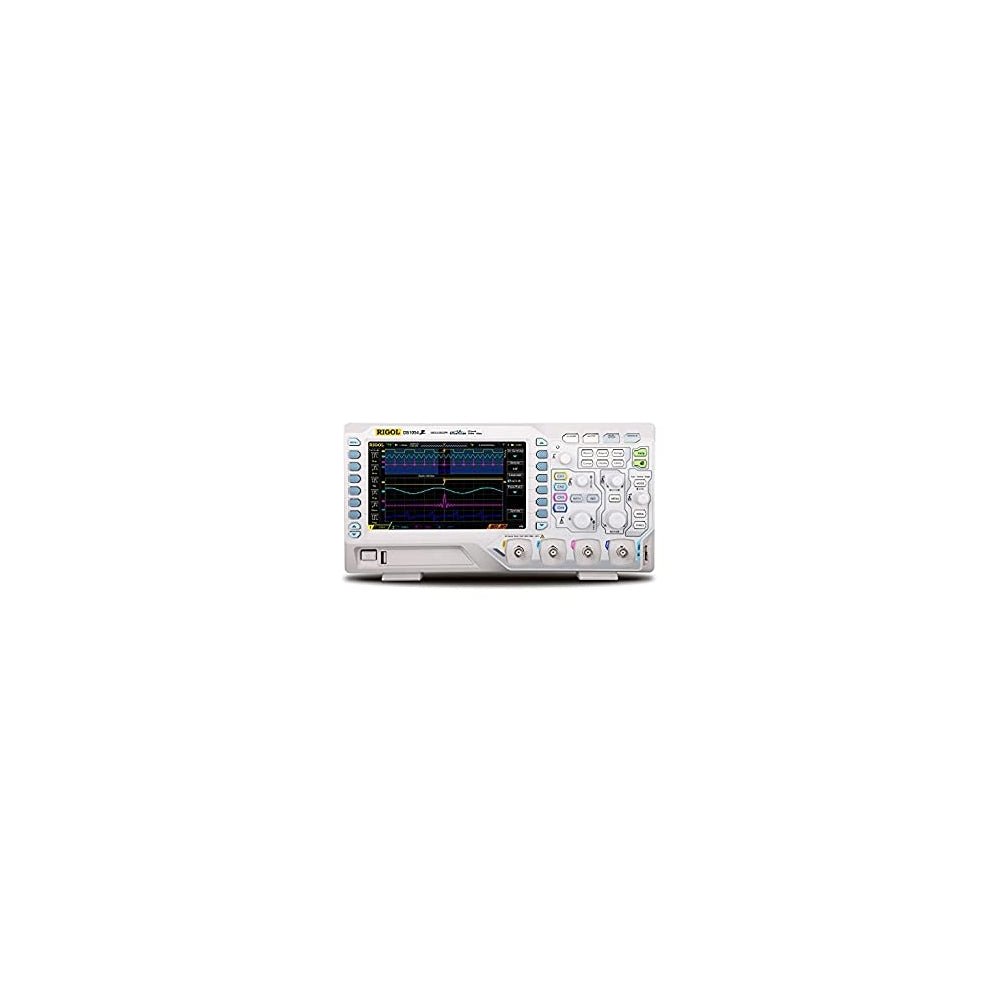

Rigol DS1054Z 50 MHz 4 channel Digital Oscilloscopes
Rigol DS1054Z 50 MHz 4 channel Digital Oscilloscopes
Starting at
Regular price Rs. 48,000.00
Regular price Rs. 48,000.00
Starting at
Regular price
Sale price Rs. 48,000.00
Unit price
Starting atRegular price
Sale price Rs. 48,000.00
/ per
Couldn't load pickup availability
Description
The Rigol DS1054Z is a 50MHz, 1GSa/s, 4-channel digital oscilloscope offering a powerful combination of quality, performance and functionality - It's excellent value for money. Features include; high memory depth, wide dynamic range, clear display, excellent waveform capture rate, comprehensive triggering functions, auto measurements with statistics, various maths functions including the FFT, pass / fail test and various remote communications interfaces. A dedicated front-panel key enables easy printing to PictBridge compatible printers. Internal and external storage of screen dumps, raw data and instrument set-ups is also supported.
Specifications
Specifications of Rigol DS1054Z 50 MHz 4 channel Digital Oscilloscopes
- Bandwidth: 50 MHz
- Analog Channels: 4
- Real Time Sampling: 1 Gsa/sec
- Memory: 24 Mpts
- Waveform Capture Rate: 30,000 wfms/s
- Vertical Resolution: 8 bits
- Vertical Scale: 1 mV/div to 10 V/div
- Timebase Scale: 5 ns/div to 50 s/div
- Serial Bus Decoding: RS232/UART, I2C, SPI
- Display: 7 inch WVGA (800x480) TFT LCD
- Connectivity: USB Host & Device, LAN
- Item Weight: 2 kg 990 g
- Product Dimensions: 33.02 x 17.78 x 12.7 cm; 2.99 Kilograms
- Item model number: DS1054Z
- Item Height: 5 Inches
- Item Width: 7 Inches
