Bombay Insulated Cables and Wires Co.

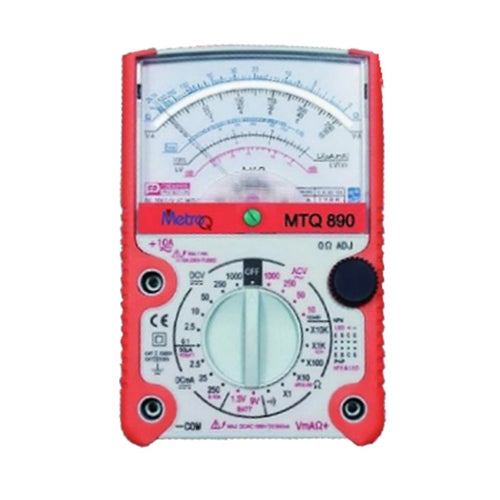

Analog, Rotary, AC / DC V., Resistance, DC Amp., I/P Imp. 20KOhm/V
Analog, Rotary, AC / DC V., Resistance, DC Amp., I/P Imp. 20KOhm/V
Starting at
Regular price Rs. 1,500.00
Regular price Rs. 1,500.00
Starting at
Regular price
Sale price Rs. 1,500.00
Unit price
Starting atRegular price
Sale price Rs. 1,500.00
/ per
Couldn't load pickup availability
Description
- Housing: Heavy ABS housing plus compact protective holster alongside
- Input Impedance: 20KΩ/DCV, 9KΩ/ACV
- Certificates: CE-EMC & LVD, CAT II 1000V, CAT III 500V
- DCV Test Ranges: 0.1–2.5–10–50–250–1000V (Accuracy: <3% of F.S.); Null Center ±DC 5V/25V (Accuracy: 5% of F.S.)
- ACV Test Ranges: 10–50–250–1000V (Accuracy: <4% of F.S.)
- DCA Test Ranges: 0.05–2.5–25–250mA, 10A (Accuracy: <3% of F.S.)
- Resistance Test Ranges: x1, x10, x100, x1K, x10K (20MΩ Max.) (Accuracy: <3% of Arc)
-
Capacitance Test Ranges:
- 0.0025–0.25–25µF (Accuracy: <3% of F.S. via CT-1)
- 2 ~ 2000µF approximate value (With Extra Kit)
- Other Tests: Dry Battery, Continuity Buzzer, Decibel, Diode, Transistor hFE
- Dimensions & Unit Weight: 160(L) x 105(W) x 40(H) mm & 380g
