Bombay Insulated Cables and Wires Co.

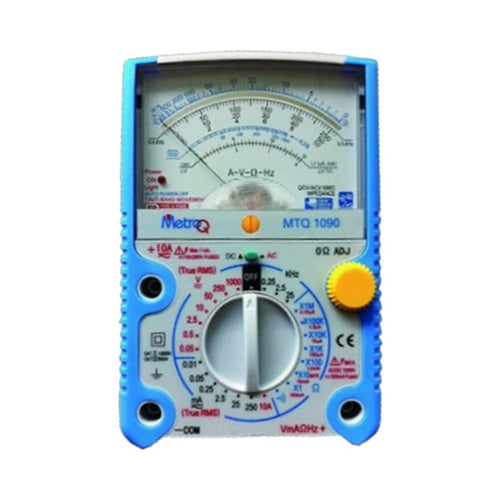

Analog, Rotary, TRMS AC/DC V., Resis., AC/DC Amp., I/P Imp10MOhm/V
Analog, Rotary, TRMS AC/DC V., Resis., AC/DC Amp., I/P Imp10MOhm/V
Starting at
Regular price Rs. 1,500.00
Regular price Rs. 1,500.00
Starting at
Regular price
Sale price Rs. 1,500.00
Unit price
Starting atRegular price
Sale price Rs. 1,500.00
/ per
Couldn't load pickup availability
Description
It's an innovated accurate, shock-proof handheld instrument with robust protective holster alongside and the adjustable back tilt device with hook-up design. It can offer accurate, reliable, True-RMS measurements with high quality Band movement, double-sided glass-epoxy PCB & unique-designed circuit, as well as mirrored Aluminum dial plate etc. It has the perfect full overload & mis-used protection via two Fuses, Oxide Varactor & Diodes.
Specifications
Specifications of Analog, Rotary, TRMS AC/DC V., Resis., AC/DC Amp., I/P Imp10MOhm/V
- Power Features: Power ON light indicator with auto power off
- Housing: Heavy ABS housing plus compact protective holster alongside
- Input Impedance: 10MΩ/DCV/ACV
- Certificates: CE-EMC & LVD, CAT II 1000V, CAT III 500V, EK1
- Movement: High quality band movement built-in
- True RMS: True RMS readings for ACV/ACA testing
- ACV/DCV Test Ranges: 0.05–0.5–2.5–10–50–250–1000V (Accuracy: <3% of F.S.)
- Resistance Test Ranges: x1, x10, x100, x1K, x10K, x100K, x1M (2000MΩ Max.) (Accuracy: <3% of Arc)
- Capacitance Test Ranges:
- 0.0025–0.25–25µF (Accuracy: <3% of F.S. via CT-1)
- 2–2000µF approximate value (With Extra Kit)
- Other Tests: Dry Battery, Continuity Buzzer, Decibel, Diode, Transistor hFE
- Frequency: 0.25–2.5K–25K Hz (Accuracy: <3% of F.S.)
- Dimensions & Unit Weight: 160(L) x 105(W) x 40(H) mm & 430g
