Arduino Nano BOARD - CLONE COMPATIBLE MODEL
Arduino Nano BOARD - CLONE COMPATIBLE MODEL
Starting at
Regular price Rs. 275.00
Regular price Rs. 275.00
Starting at
Regular price
Rs. 450.00
Sale price Rs. 275.00
Unit price
Starting atRegular price
Sale price Rs. 275.00
/ per
Couldn't load pickup availability
Description

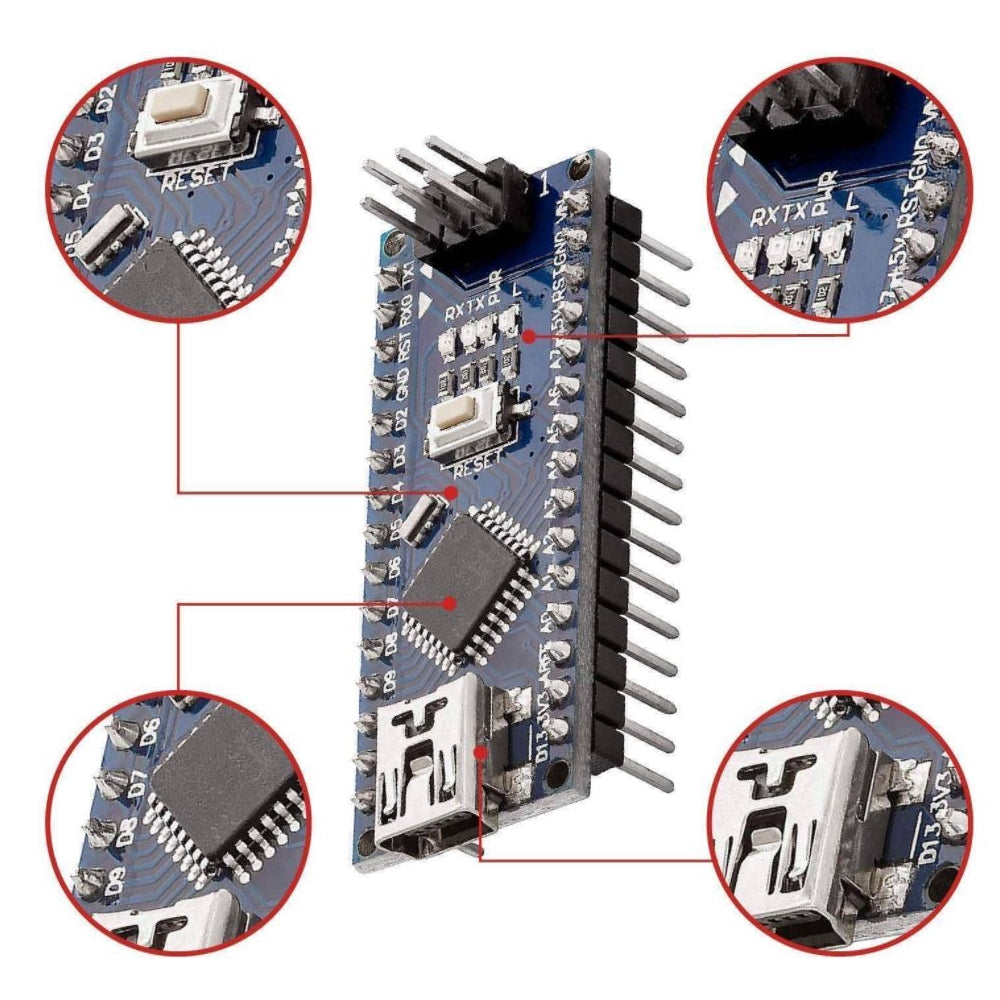

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Specifications
Specifications of Arduino Nano BOARD - CLONE COMPATIBLE MODEL
- MICROCONTROLLER: ATmega328
- ARCHITECTURE: AVR
- OPERATING VOLTAGE: 5 V
- FLASH MEMORY: 32 KB of which 2 KB used by bootloader
- SRAM: 2 KB
- CLOCK SPEED: 16 MHz
- ANALOG IN PINS: 8
- EEPROM: 1 KB
- DC CURRENT PER I/O PINS: 40 mA (I/O Pins)
- INPUT VOLTAGE: 7-12V
- DIGITAL I/O PINS: 22 (6 of which are PWM)
- PWM OUTPUT: 6
- POWER CONSUMPTION: 19 mA
- PCB SIZE: 18 x 45 mm
- WEIGHT: 7 g
