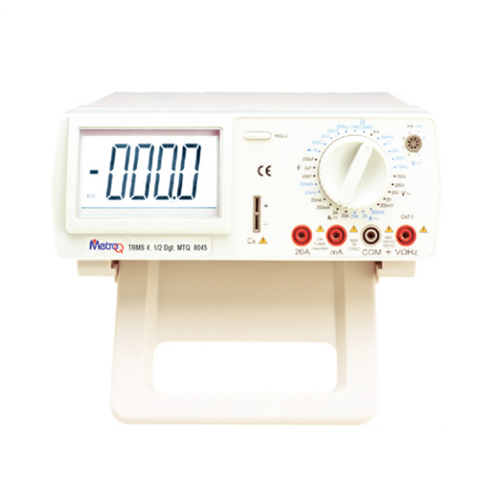

DMM Bench, TRMS, 4.5Dgt., AC/DCV, AC/DCAmp., Resistance, Cap., Freq.,

Specifications of DMM Bench, TRMS, 4.5Dgt., AC/DCV, AC/DCAmp., Resistance, Cap., Freq.,

Basic Function

• DC Voltage: 200mV / 2V / 20V / 200V / 1000V — Accuracy: ±(0.05% + 3)
• AC Voltage: 200mV / 2V / 20V / 200V / 750V — Accuracy: ±(0.8% + 80)
• DC Current: 20mA / 200mA / 2A / 20A — Accuracy: ±(0.35% + 10)
• AC Current: 200mA / 2A / 20A — Accuracy: ±(0.8% + 80)
• Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ — Accuracy: ±(0.1% + 5)
• Frequency: 20kHz / 200kHz — Accuracy: ±(1.0% + 20)
• Capacitance: 20nF / 2μF / 200μF — Accuracy: ±(3.5% + 20)

Special Functions & Specifications

• Model: MTQ 8045
• Diode Test: ✓
• Triode Test: ✓
• Continuity Buzzer: ✓
• Overload Protection: ✓
• Input Impedance: 10MΩ
• AC Frequency Response: 3 times/s
• Sampling Rate: 40~50kHz
• Operation Mode: Manual range
• Max. Display: 19999
• Dimensions: 245 × 220 × 82 mm
• Weight: Approx. 1 Kg
• Power: AC220V / 110V, 50Hz / 60Hz
