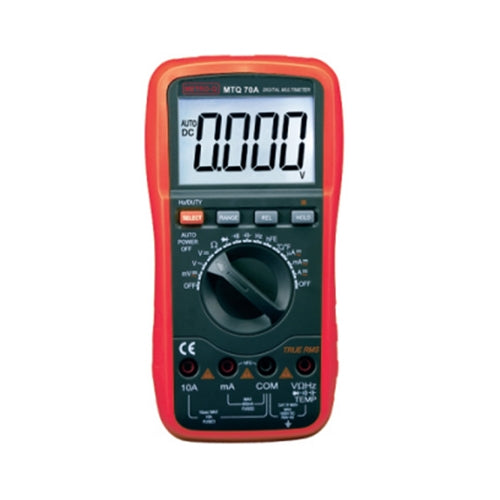

DMM TRMS, AutoRange3-3/4Dgt., AC/DC V, AC/DCAmp, Res, Cap, Freq, Duty Cyc

Specifications of DMM TRMS, AutoRange3-3/4Dgt., AC/DC V, AC/DCAmp, Res, Cap, Freq, Duty Cyc

• Basic
  Function Range / Accuracy
• DCV: 400mV/4V/40V/400V/1000V — ±(0.5%+4)
• ACV: 400mV/4V/40V/400V/750V — ±(0.8%+10)
• DCA: 400uA/4000uA/40mA/400mA/10A — ±(1%+10)
• ACA: 400uA/4000uA/40mA/400mA/10A — ±(1.5%+10)
• Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ — ±(0.8%+4)
• Capacitance: 4nF/40nF/400nF/4uF/40uF/200uF — ±(2.5%+20)
• Frequency: 100/1000/10k/100k/1M/30MHz — ±(0.5%+10)
• Celsius: -40~1000°C — ±(1.0%+5))
• Special Function
• TRMS
• Diode: √
• Transistor: √
• Continuity Buzzer: √
• Low battery indication: √
• Data hold: √
• Auto Power Off: √
• Analog bar graph: √
• Shockproof protection: √
• Additional Specifications
• Function protection: 1%~99.%
• Input impedance: 10MΩ
• Sampling rate: 3 times/s
• AC Frequency response: (40-400)Hz
• Operation Way: Auto range
• Max. display: 3999
• LCD size: 65×45mm
• Battery: 3V (1.5V×2)
