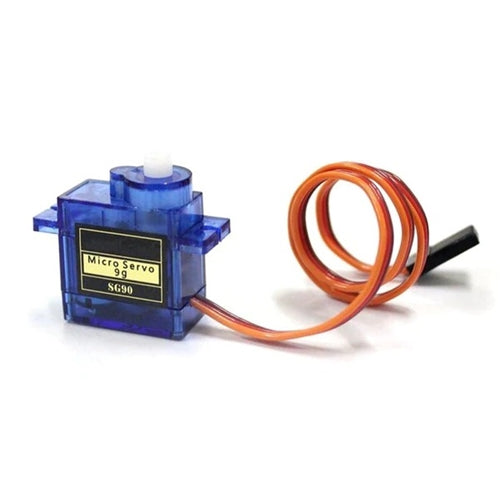

SG90 Micro Servo Motor
SG90 Micro Servo Motor
Starting at
Regular price Rs. 100.00
Regular price Rs. 100.00
Starting at
Regular price
Sale price Rs. 100.00
Unit price
Starting atRegular price
Sale price Rs. 100.00
/ per
Couldn't load pickup availability
Description
SG90 is a small servo motor with standard functionality and working. This servo motor rotates 180 degrees, 90 degrees in each direction. Controlling this motor is not so much difficult like it does not require any motor controller and can be controlled by any servo code or library.
Feature
- Quick control response
- Constant torque throughout range
Specifications
Specifications of SG90 Micro Servo Motor
- Model: SG90
- Weight: 9gm
- Operating Voltage: 0 ~ 7.2V
- Operating Speed @ 4.8V: 10 sec/60°
- Stall Torque @ 4.8V: 2kg-cm
- Stall Torque @ 6.6V: 6kg-cm
- Operating Temperature: -30 to 60°C
- Dead Band Width: 7 μs
- Gear Type: Glass Fiber
- Rotational Degree: 180º
- Servo Plug: JR
- Cable Length: 25cm
- Size: 8mm x 12.6mm x 34.5mm (L x W x H)
Applications:
- Used as actuators in many robots like Biped Robot, Hexapod, robotic arm etc.
- Commonly used for steering system in RC toys
- Automatic Solar System
